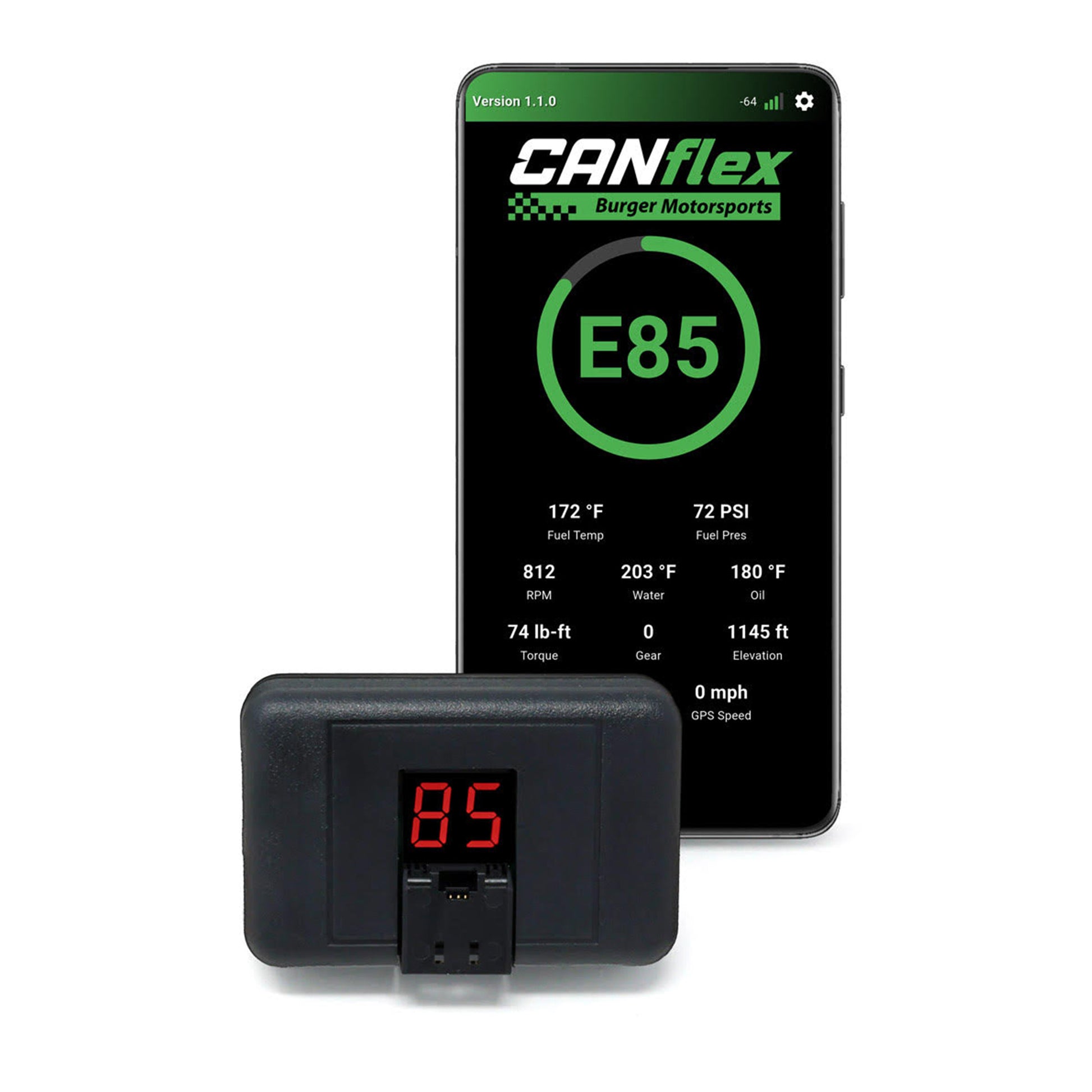

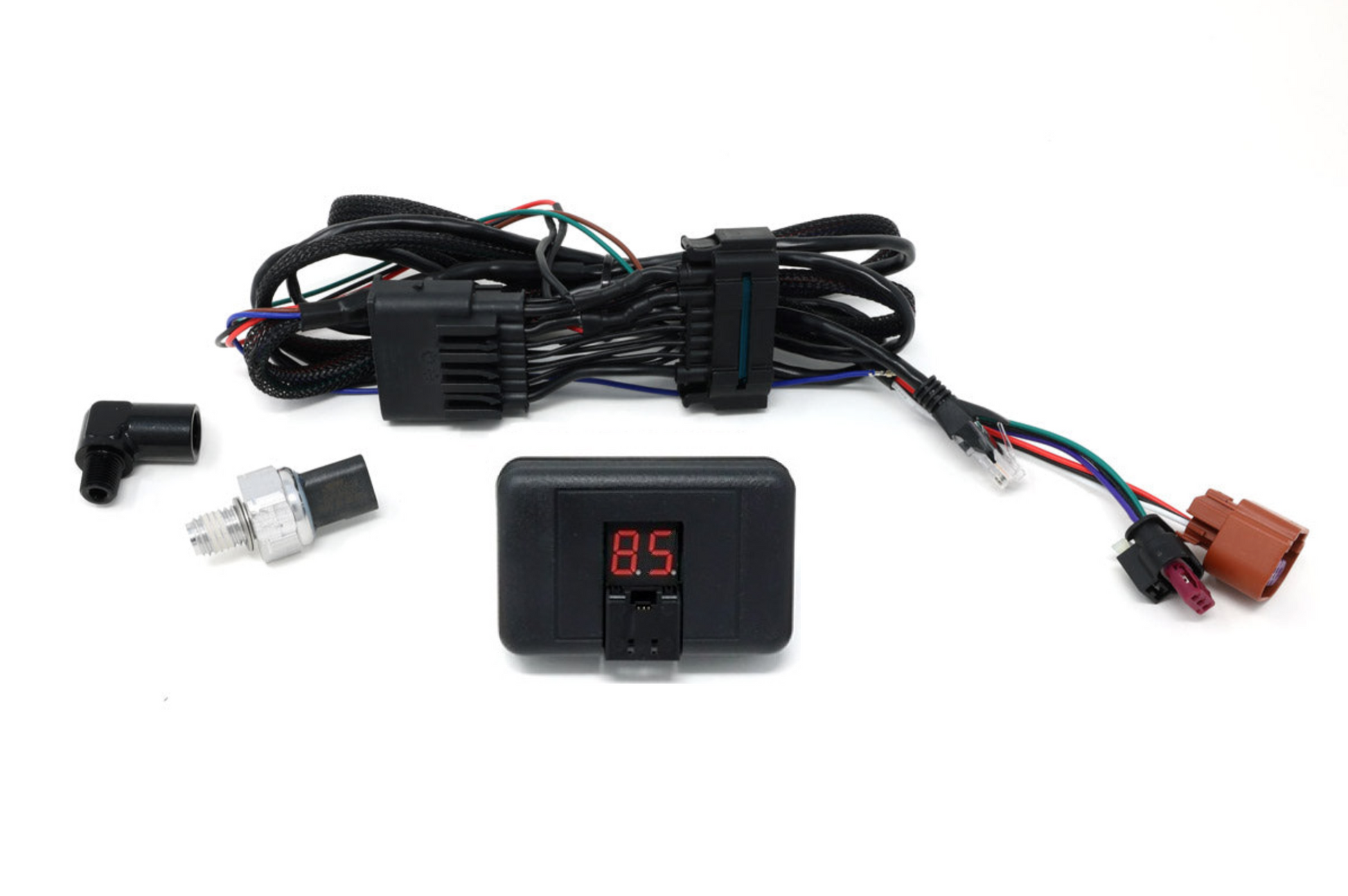

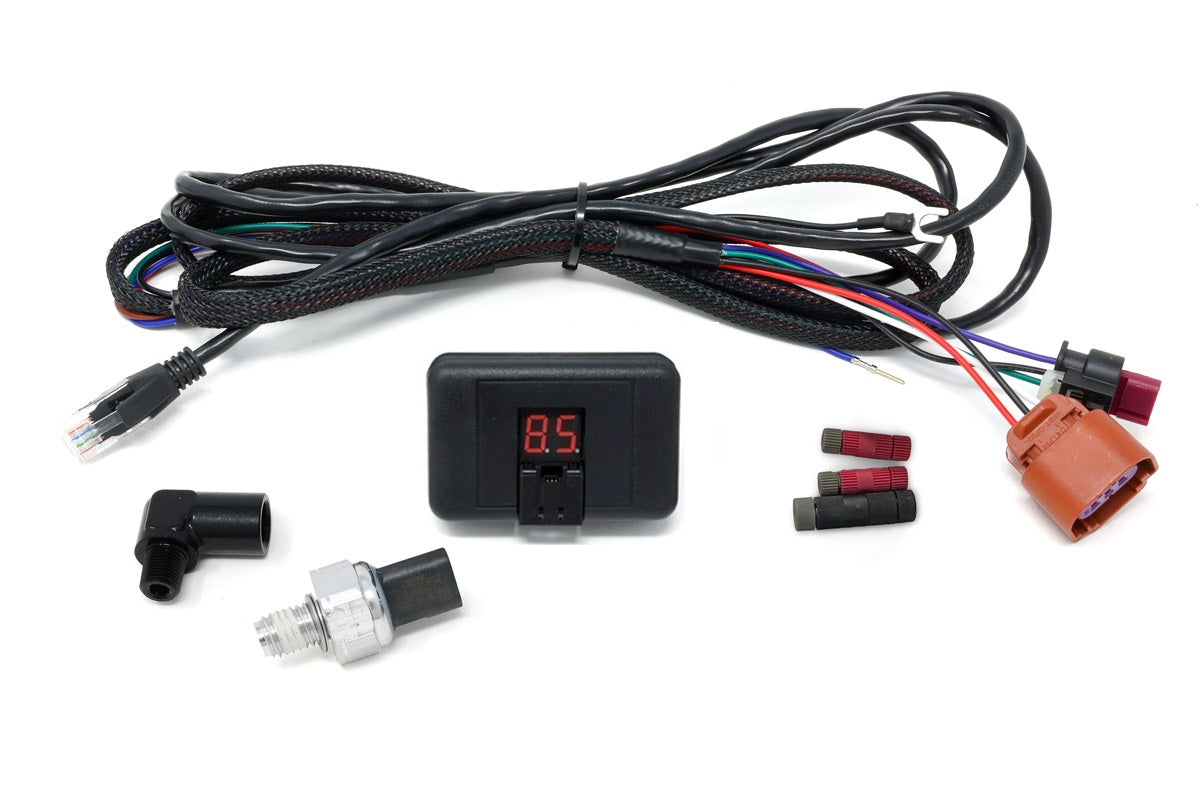

This universal E85 analyzer plugs directly into your Flex Fuel sensor (sensor kit sold separately) and outputs your ethanol reading on CANbus address 0xEC allowing your flash only DME and/or JB4 to read the ethanol signal. In addition it includes a harness plug for an optional low fuel pressure sensor (available from Fuel-It!) adding this critical tuning information to platforms like the B58 that don't include a factory low fuel pressure sensor.
![](https://cdn.shopify.com/s/files/1/0549/6006/2603/files/bms-logo-white-letters-transparent_240x240.png?v=1651867401)
Can be used with both rear mount and front mount sensor kits. Universal CANbus connections are attached using removable posi-taps based on mounting location. See wiring guide below.

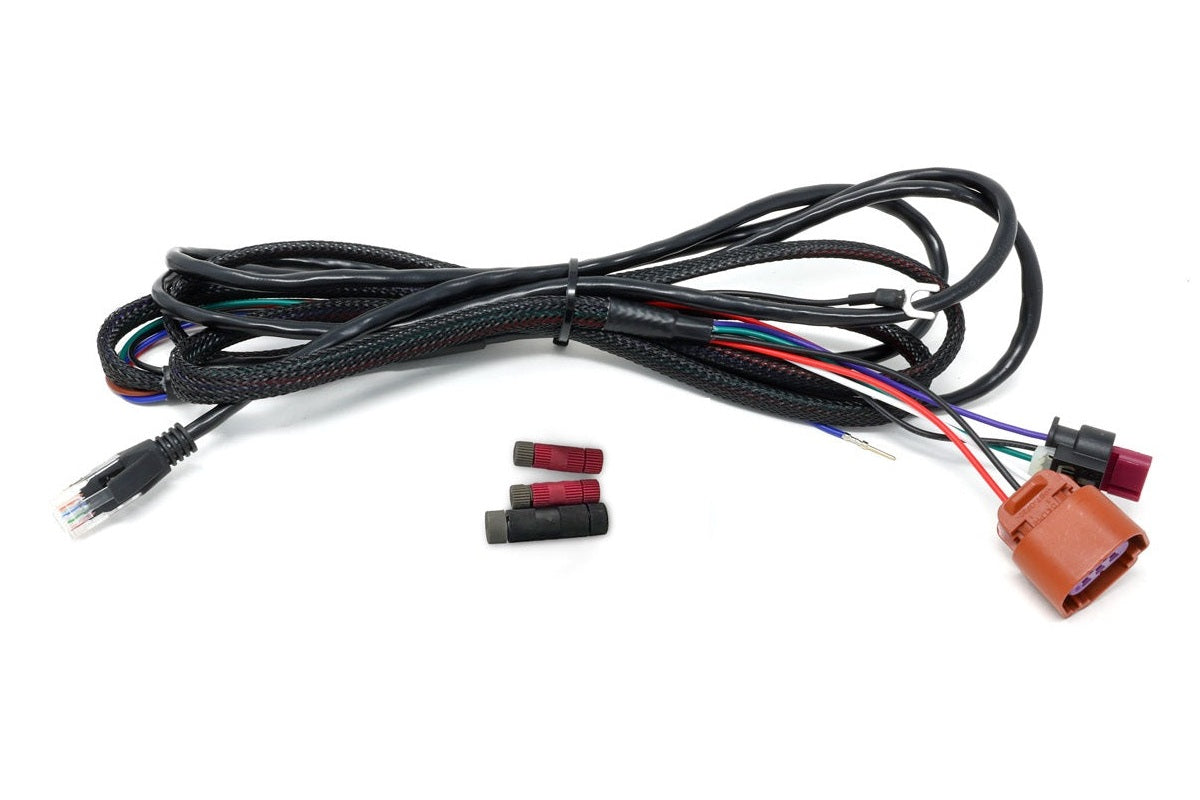

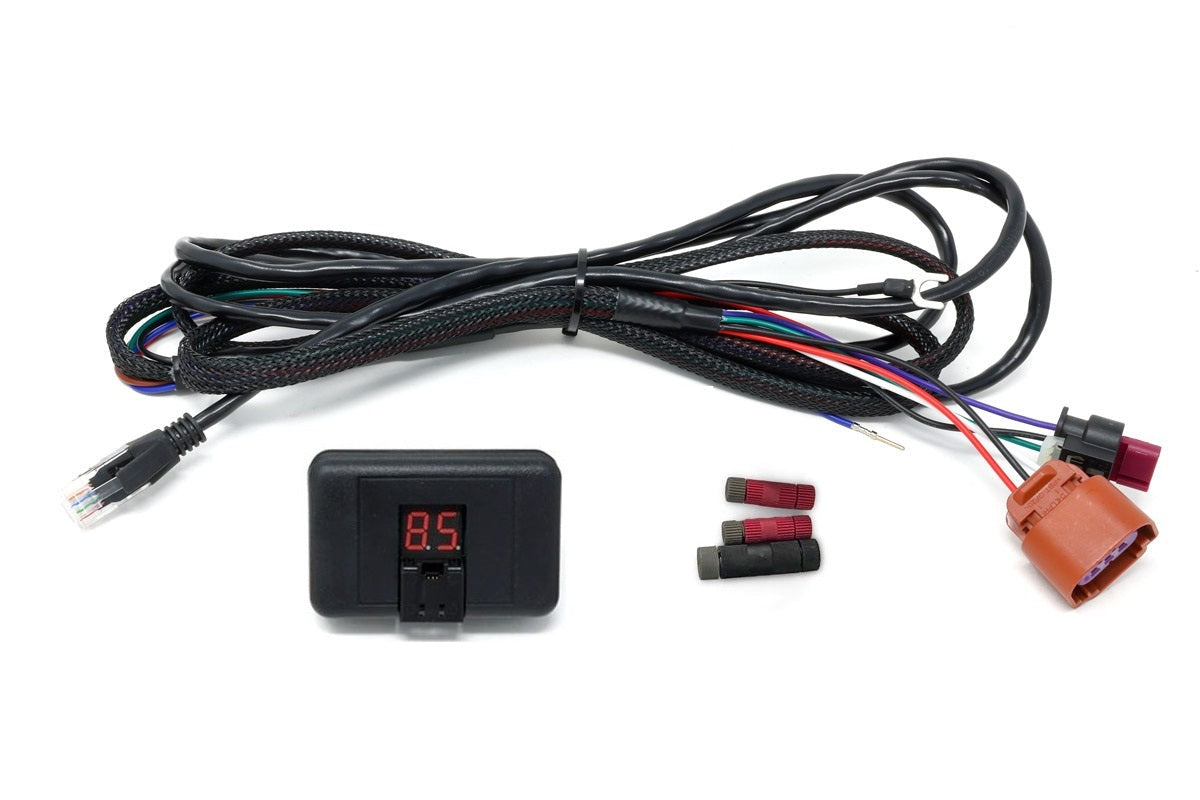

Wiring Guide for universal harness
Red/Green: 12v switched power via fuse tap or posi-tap
Black: Ground
Orange: CAN- (For front mount usually the factory yellow CANbus wire)
Red/Blue: CAN+ (For front mount usually the factory red CANbus wire)
Harness types:

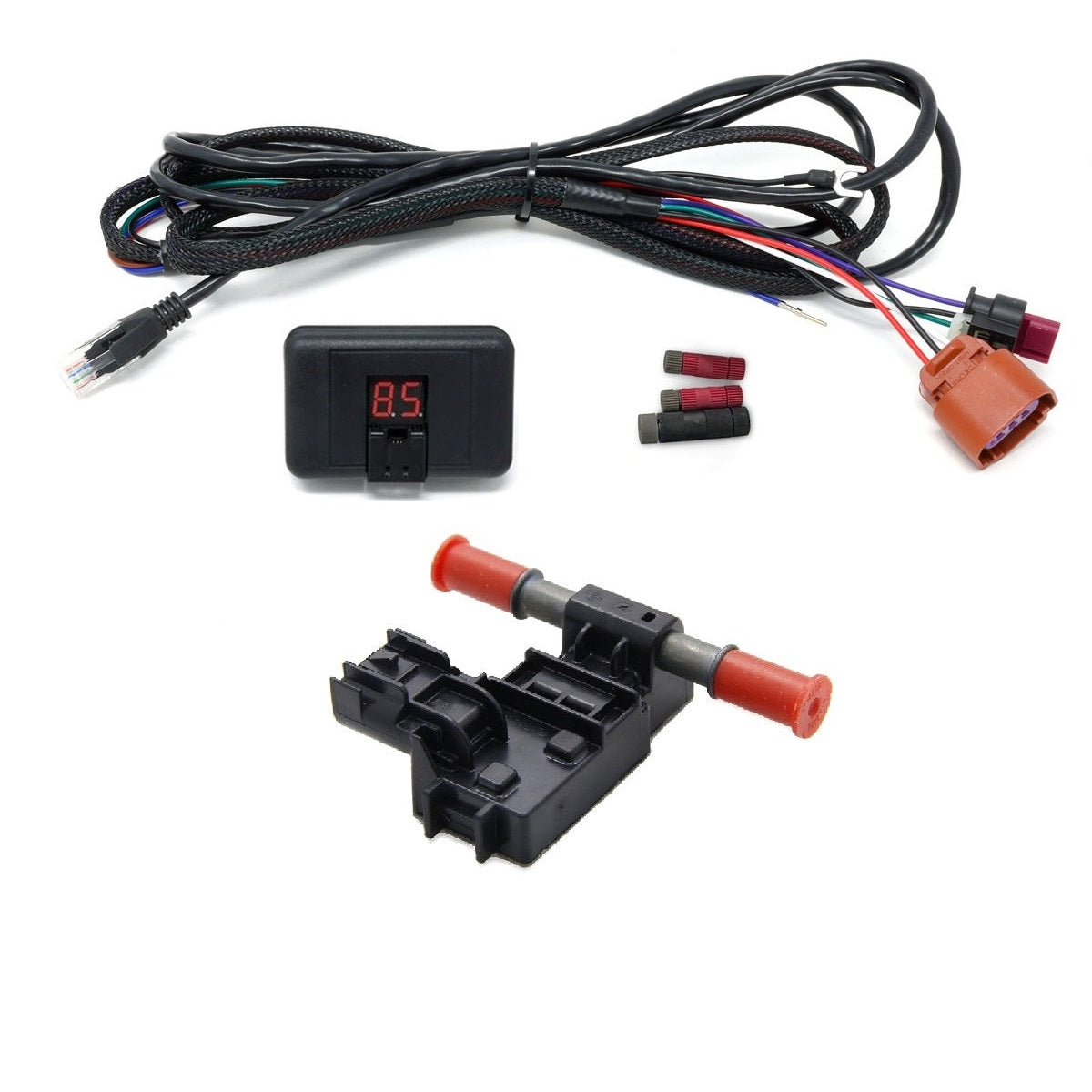

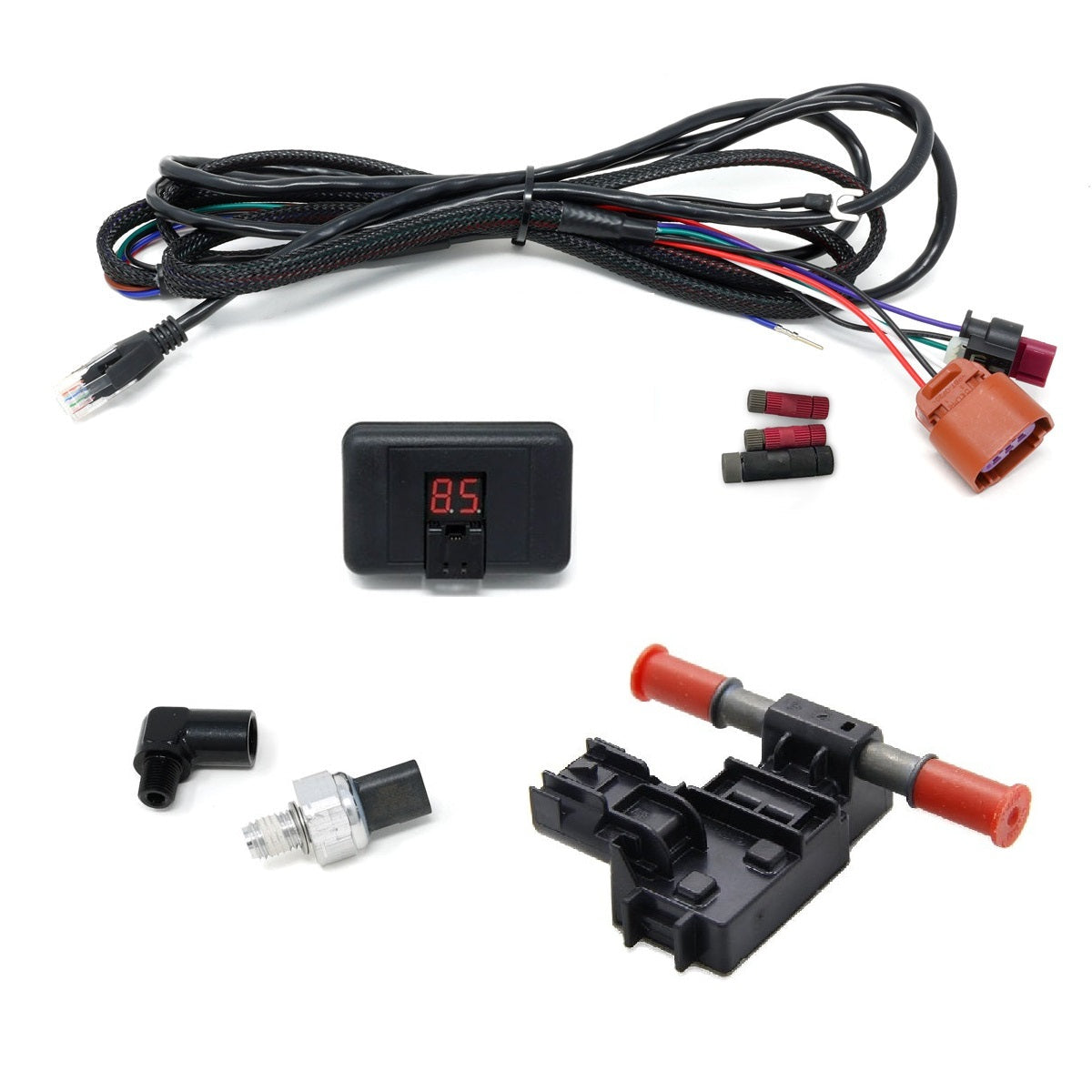

- Universal harness, this is a generic harness for use with JB4, BM3, MHD, ECUtek, etc.

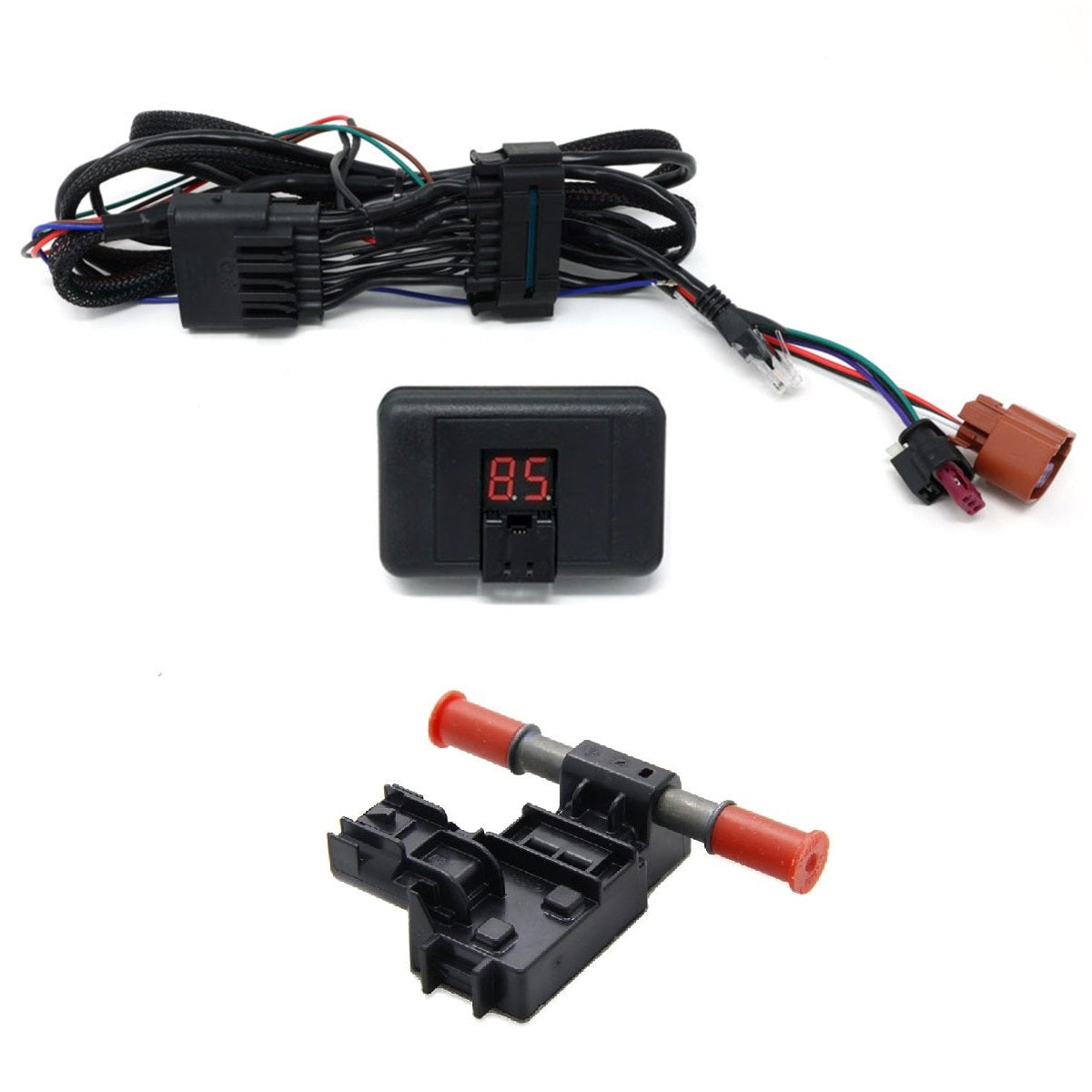

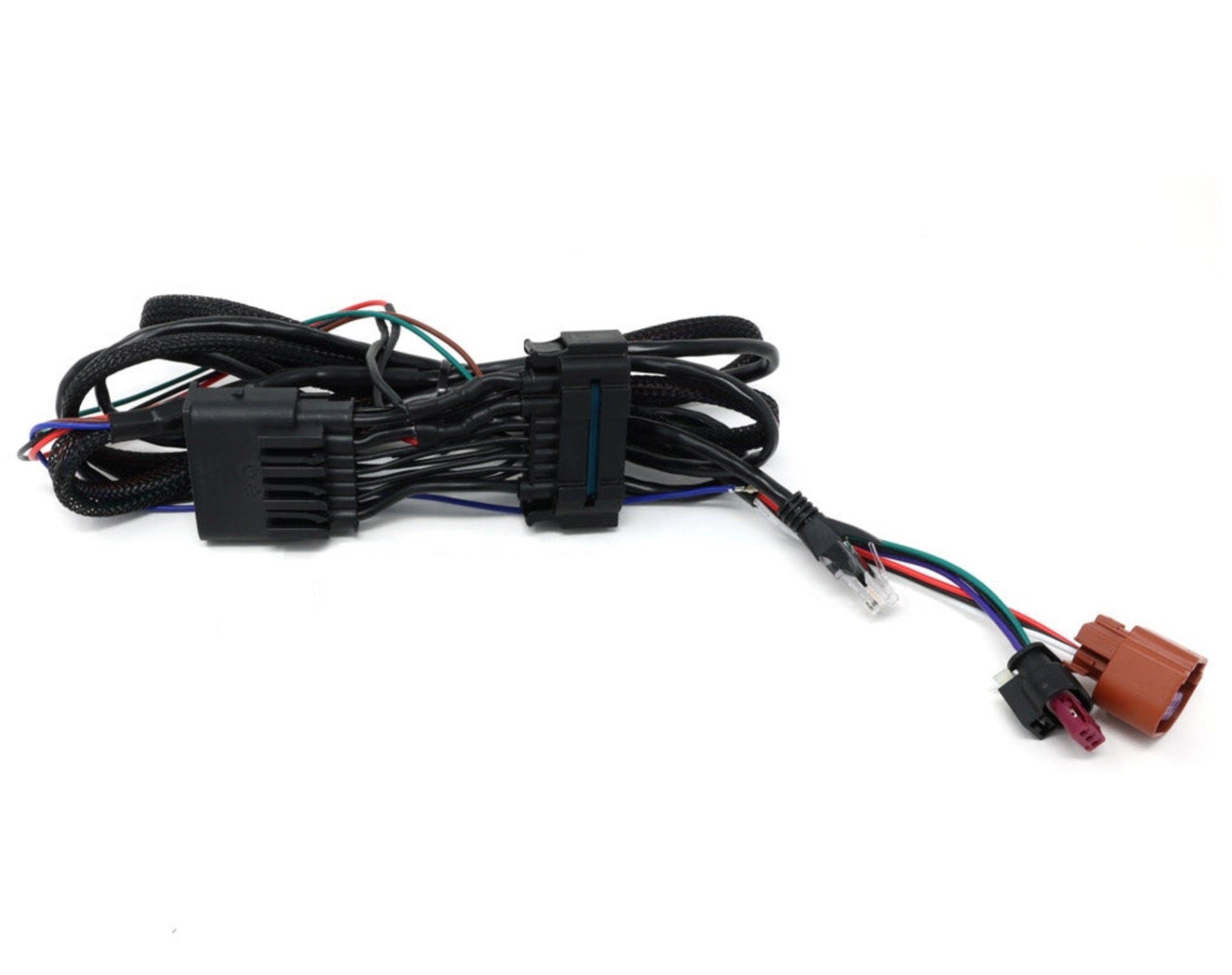

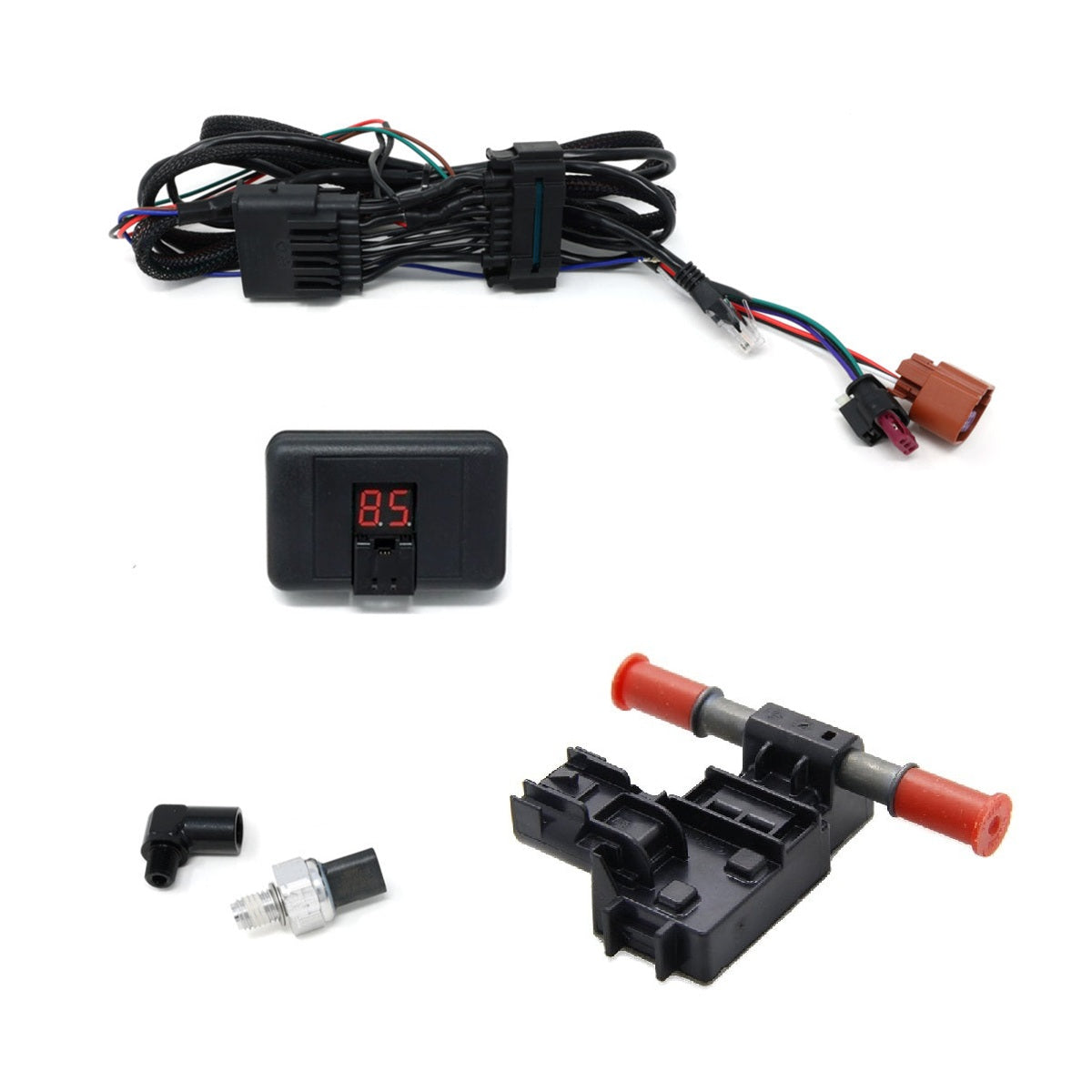

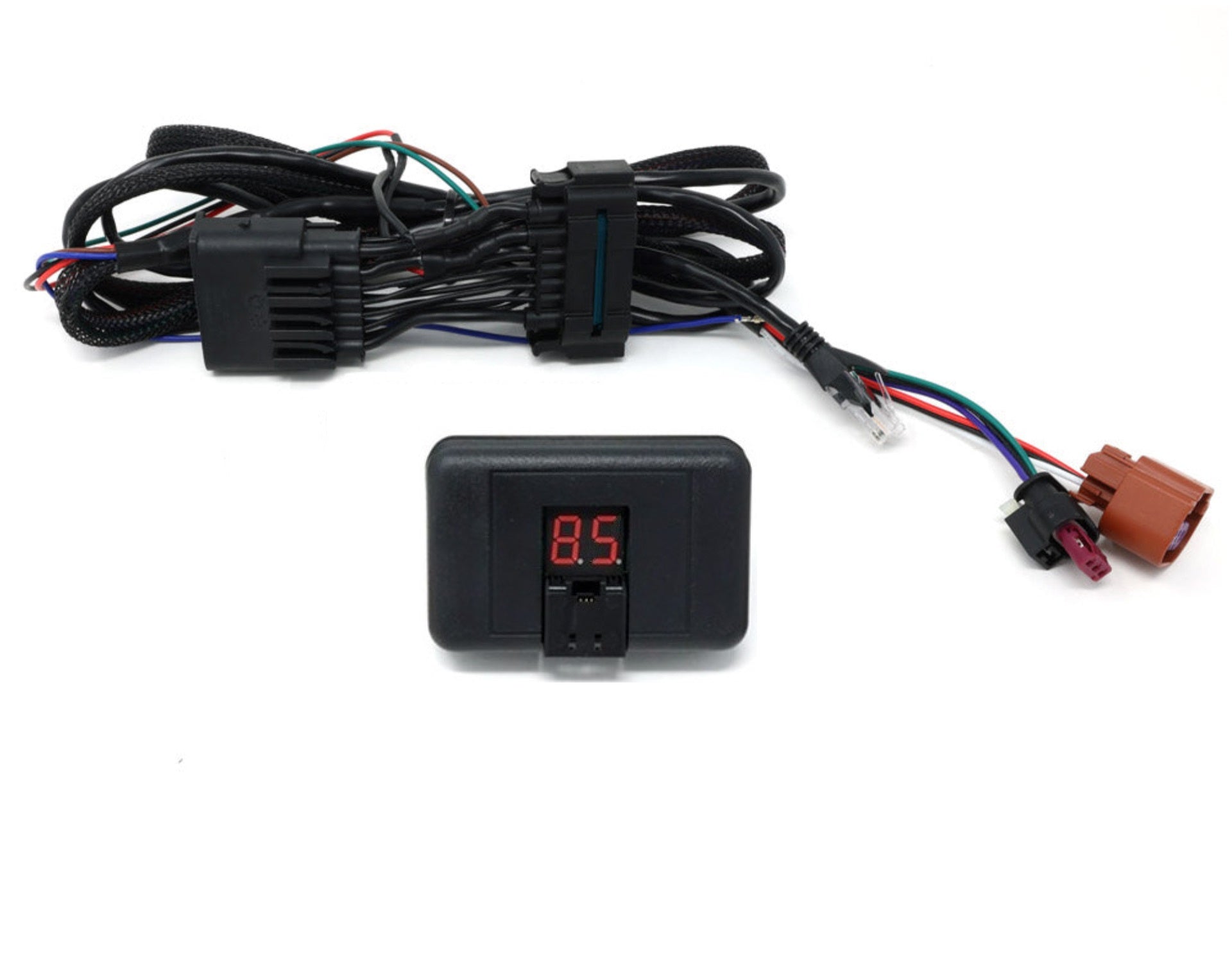

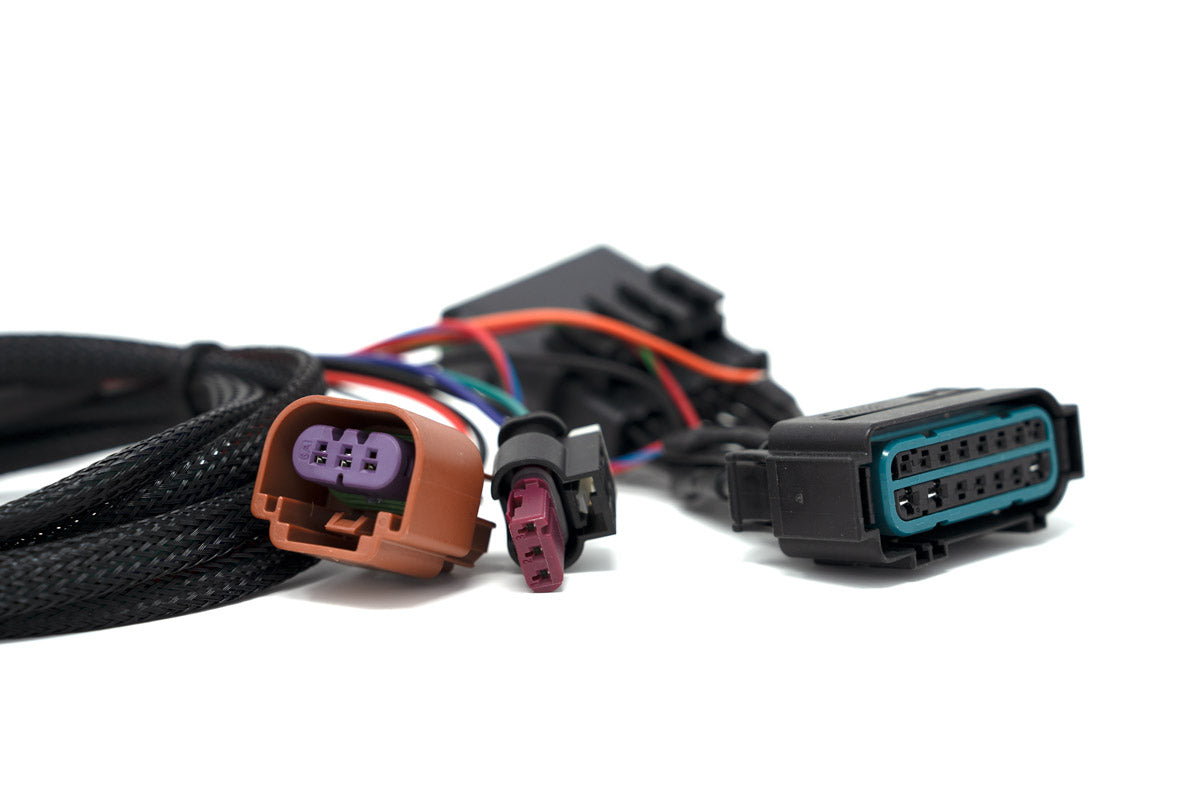

- PnP harness, this harness is a plug and play option with the following requirements.
- It is only compatible with the BMW GEN2 B58 and S58 platforms with automatic transmissions unless running BM3.
- You must be running a JB4, MHD, ECUtek, or similar tune
- Flex fuel kit must be mounted in the engine bay near the ECU, rear mounted flex fuel kits must use the universal harness
- BM3 tunes are not compatible with the PnP harness and requires our universal harness.
Diagnostic LED:
Solid green: Unit has power/ground
Flashing green: Unit has power/ground and CANbus communication
Note: We can customize the transmit address, format, and transmit
speed. Contact us if you have a special request.
