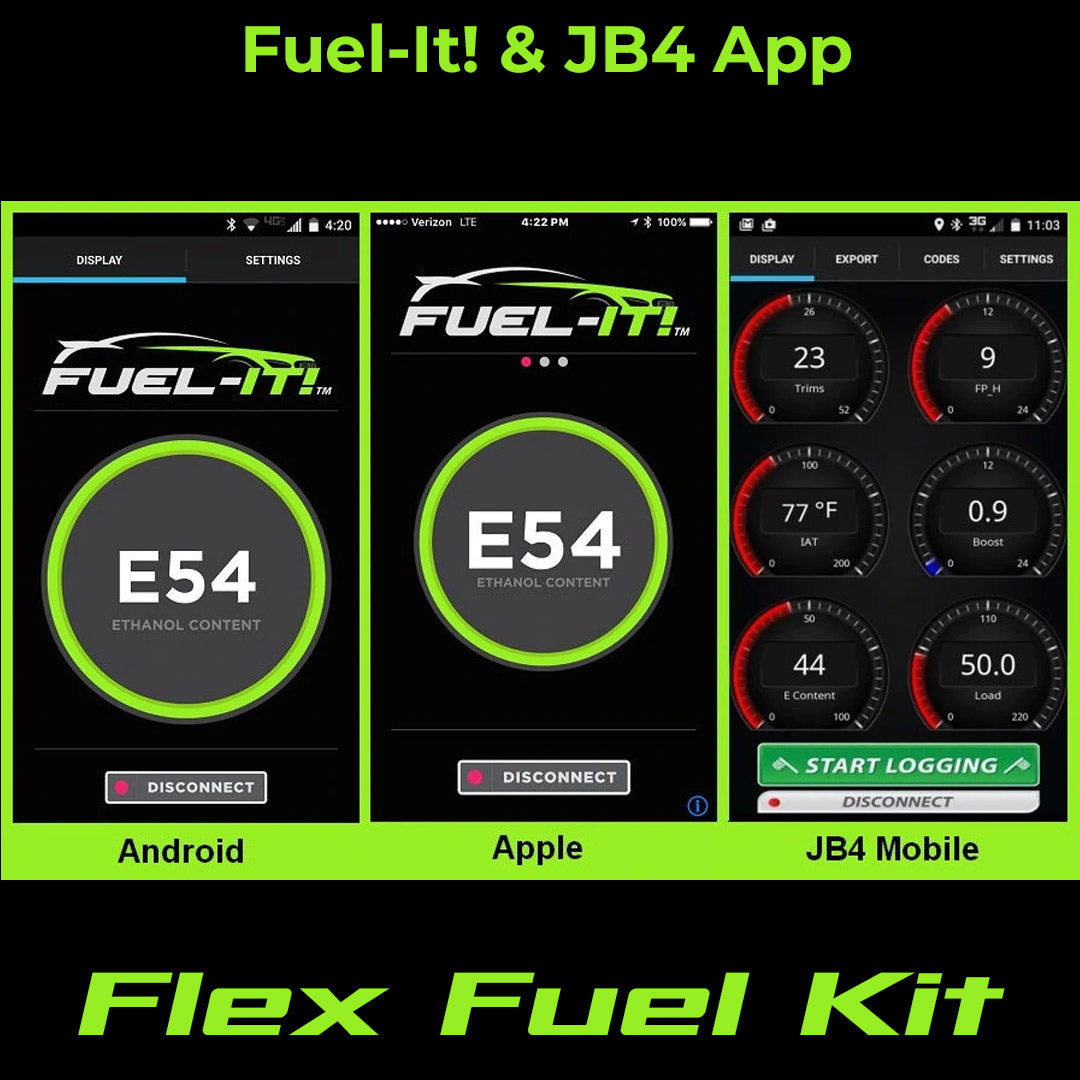

Know your exact ethanol content in real-time via the Fuel-It! or JB4 mobile app on your smartphone or tablet.
Looking to run ethanol mixes in your BMW, you need this kit!
This is a complete plug and play kit to install a Bluetooth ethanol sensor in about 30 minutes. (Check compatibility for your platform below)

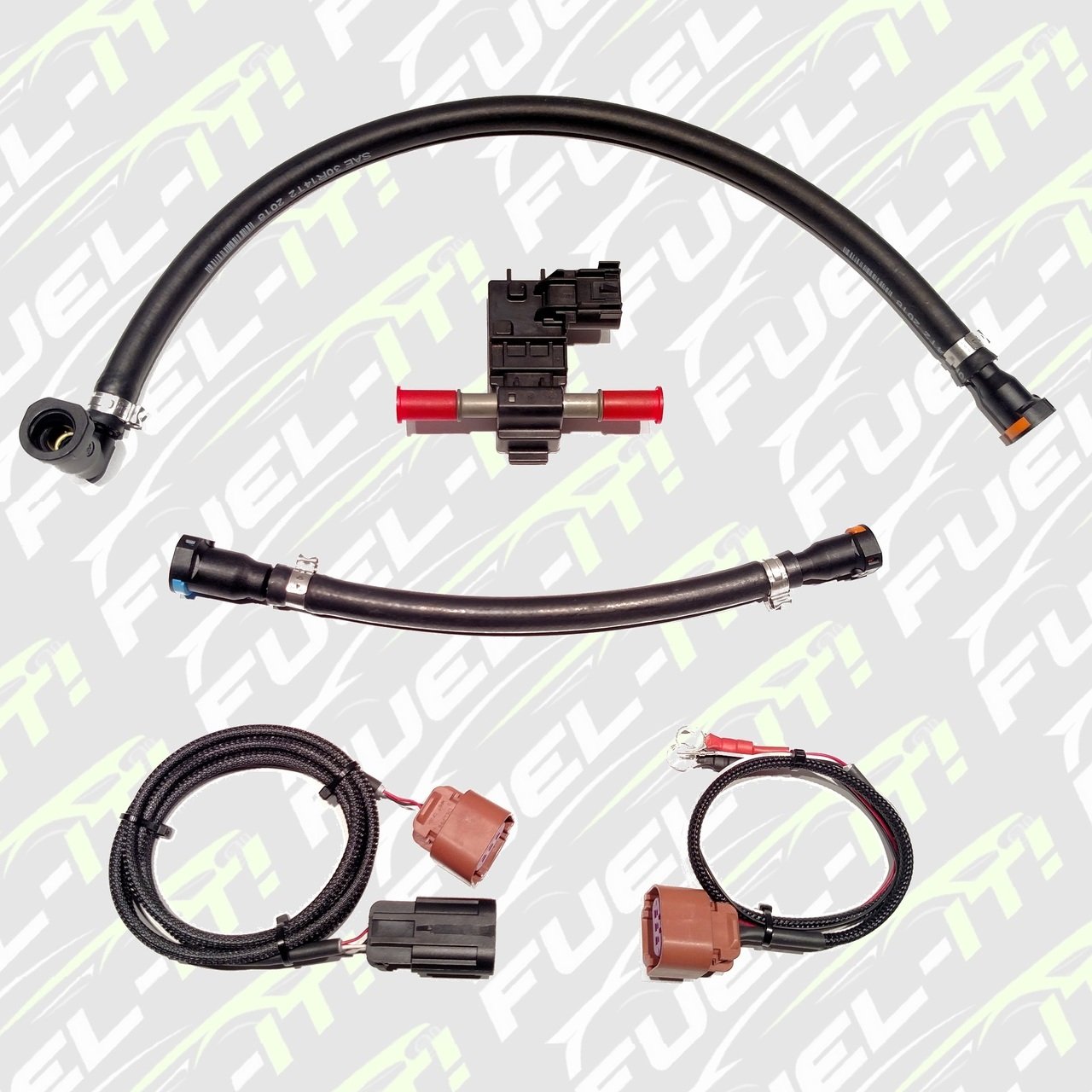

The kit includes the following:
- New 5/16" E85 compatible fuel lines for your engine bay
- Genuine Continental ethanol sensor
- Fuel-It! Bluetooth analyzer (iPhone or Android app must be downloaded to use this kit)
- Plug and play harness
- NOTICE: If you have an N26 motor type, you will need to retrofit the HPFP supply line to part number 13537585415 to be compatible with this kit.
-
Includes both Bluetooth App & 5v analog output for JB4 or flash tuning
-
- Bluetooth (iPhone or Android app must be downloaded to use this feature)
- If you are using an Apple product the app can be found by clicking here
- If you are using an Android product the app can be found by clicking here
This kit is compatible with the following
- 1' F20 07/2010 - 02/2015)
- 1' F20 LCI 05/2014 - 06/2016)
- 1' F21 07/2010 - 02/2015)
- 1' F21 LCI 09/2014 - 06/2016)
- 2' F22 10/2012 - 06/2016)
- 2' F23 04/2014 - 06/2016)
- 3' F30 04/2011 - 01/2016)
- 3' F30 LCI 12/2014 - 10/2018)
- 3' F31 07/2011 - 06/2015)
- 3' F31 LCI 12/2014 - 06/2016)
- 3' F34 GT 07/2012 - 06/2016)
- 3' F35 06/2011 - 08/2015)
- 3' F35 LCI 01/2015 - 08/2016)
- 4' F32 11/2012 - 06/2016)
- 4' F33 03/2013 - 02/2016)
- 4' F36 Gran Coupé 07/2013 - 12/2016)
*For the BMW F-series JB4 platform connect the white wire to position #14 on the JB4 25 pin harness. Select WMI Ethanol Setup option 1 to enable pin location 15/16 flex fuel input.
*If you aren't sure whether this kit fits your car, send us a picture of your engine bay to info@fuel-it.com
*Ethanol Sensors don't actually read the ethanol content, the readings are based on the absence of gasoline, so if your fuel is contaminated your ethanol readings may be artificially elevated.
